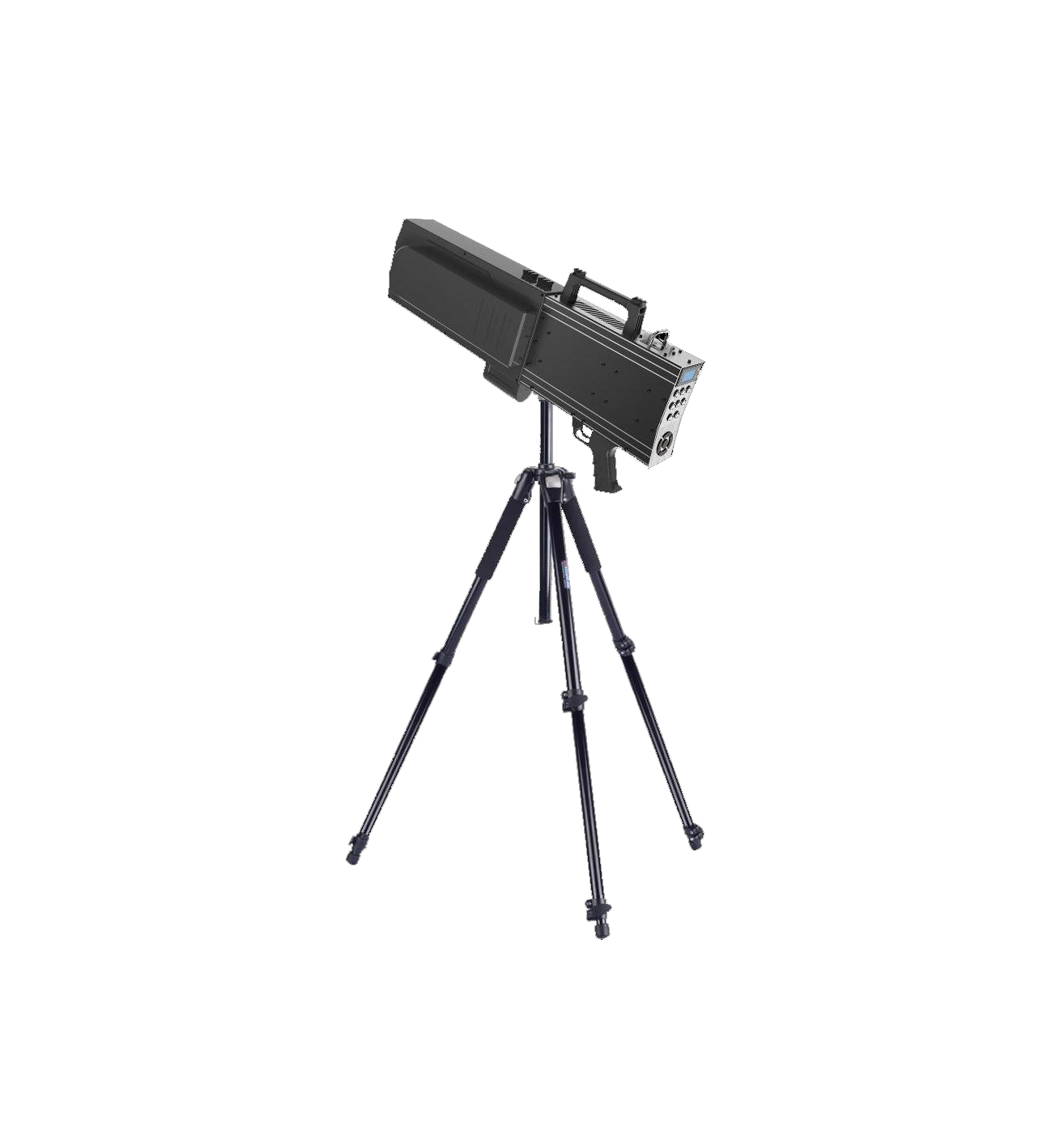

H-A02-8 Drone Jammer Gun | Multi-Band Long Range UAV Disruption Device

H-A02-8 Multi-Frequency Anti-Drone Jammer Gun Product Overview The H-A02-8 is a professional-grade, portable anti-drone jammer gun designed to neutralize unauthorized drone threats at medium to long ranges. It offers a comprehensive and powerful output across eight critical radio frequency bands, effectively disrupting the control, navigation, and data tra……

Send Inquiry

drone Jammer Gun

Functional characteristics

H-A02-8 Multi-Frequency Anti-Drone Jammer Gun

Product Overview

The H-A02-8 is a professional-grade, portable anti-drone jammer gun designed to neutralize unauthorized drone threats at medium to long ranges. It offers a comprehensive and powerful output across eight critical radio frequency bands, effectively disrupting the control, navigation, and data transmission links of a wide variety of commercial and custom drones. Its modular battery design and configurable output make it a reliable and adaptable tool for tactical security operations.

Key Features & Advantages

Broad-Spectrum Jamming: Covers 8 essential frequency bands (433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz) to counter most consumer and professional drones.
Long Operational Range: Capable of disrupting drone signals effectively at distances up to 1,500 meters in optimal conditions.
Configurable Output: Standard 8-channel jamming with an optional 4-channel configuration available for customized operational needs.
Enhanced Portability & Uptime: Features a removable, rechargeable battery system, allowing for quick swaps in the field to maintain continuous operational readiness.
Tactical Design: Engineered as a shoulder-fired, handheld unit for rapid deployment and ease of use by security personnel in dynamic situations.

Detailed Product Specifications

Primary Technical Parameters

Parameter	Specification	Notes
Model	H-A02-8	Anti-Drone Jammer Gun
Standard Jamming Bands	433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz	Customizable frequency sets available.
Typical Effective Range	0 – 1,500 meters	Line-of-sight dependent; varies with environment and target.
Number of Output Channels	8 Channels (Standard)	Optional 4-channel configuration can be selected.
Power System	Removable/Rechargeable Battery Pack	Enables extended missions with spare batteries.

Standard Jamming Frequency Breakdown

Channel	Target Frequency Band	Typical Purpose (Disrupted Link)
1	433 MHz	Remote Control, Telemetry
2	900 MHz	Remote Control, Long-Range Data Link
3	1.2 GHz	FPV Video Transmission, Control
4	1.4 GHz	Control & Telemetry Links
5	1.5 GHz	GPS / GNSS Satellite Navigation
6	2.4 GHz	Wi-Fi, Remote Control, Video (common band)
7	5.2 GHz	Wi-Fi, Control & Video Transmission
8	5.8 GHz	Primary FPV Video & Control (common band)

*Note: The inclusion of the 1.5GHz band for GPS/GNSS disruption is a critical feature for terminating drone navigation and enabling forced landing or return-to-home procedures.*

Conclusion

The H-A02-8 Anti-Drone Jammer Gun provides security teams with a powerful, flexible, and immediate response solution against intrusive drones. Its wide frequency coverage ensures effectiveness against a vast majority of UAVs on the market, while the long range and removable battery design offer practical advantages in real-world field operations. Ideal for protecting sensitive venues, critical infrastructure, and ensuring privacy during high-security events. Specifications, including frequency sets, can be customized to meet specific mission requirements.
