Home > Product > Portable Drone jammer > DF1300M Portable Mobile Detection & Lure Anti-Drone System | GNSS Spoofing Device

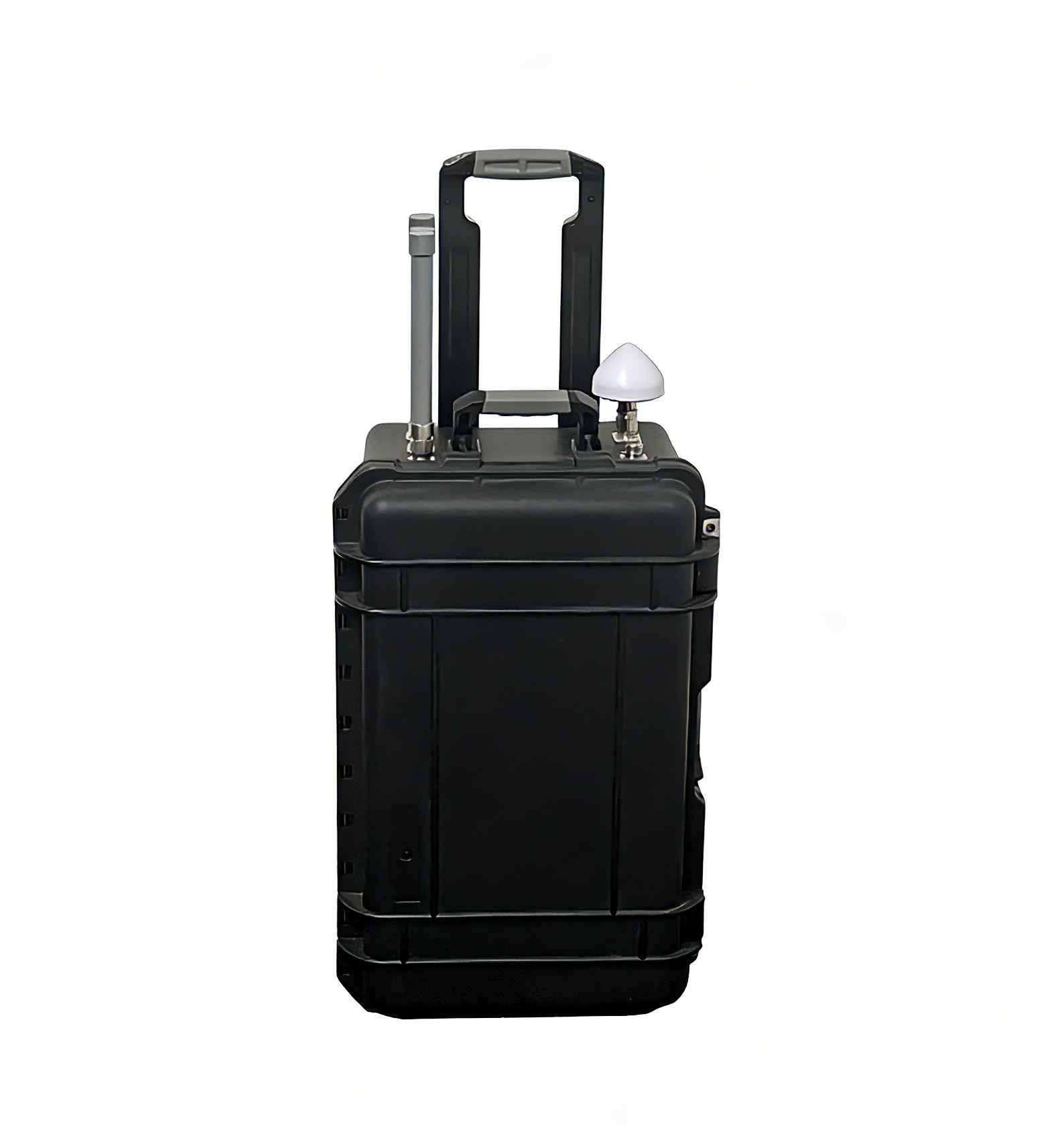

DF1300M Portable Mobile Detection & Lure Anti-Drone System The DF1300M is a cutting-edge, portable counter-unmanned aerial vehicle system that integrates real-time detection with active navigation signal spoofing. Unlike traditional jamming methods, this device employs sophisticated Global Navigation Satellite System (GNSS) signal simulation to deceive……
The DF1300M is a cutting-edge, portable counter-unmanned aerial vehicle system that integrates real-time detection with active navigation signal spoofing. Unlike traditional jamming methods, this device employs sophisticated Global Navigation Satellite System (GNSS) signal simulation to deceive drones reliant on satellite positioning. By transmitting simulated GNSS signals, it can gently take control of a target drone’s navigation, enabling operators to lure it off-course, force it to hover, or execute a controlled landing in a safe area.
Designed for rapid deployment by mobile teams, it offers a non-destructive, precise countermeasure solution for protecting sensitive venues, critical infrastructure, and public events.
This all-in-one system merges a detection sensor with a GNSS spoofing emitter in a single, portable case. Its primary operational concept is deception rather than disruption, making it suitable for environments where RF interference must be minimized.
Integrated Detection & Lure: Combines a 360° drone detection radar/radio frequency (RF) sensor with a multi-band GNSS spoofing transmitter.
GNSS Spoofing Technology: Simulates authentic BDS, GPS, GLONASS, and Galileo signals to mislead the drone’s flight controller and navigation system.
One-Key Countermeasure: Features a physical button for instant, single-press activation of lure, tracking, or forced landing sequences.
Fully Portable: All-in-one design with integrated battery and handle, built for true mobile, single-operator use in the field.
Versatile Deployment: Can be operated as a standalone mobile unit, set up in a fixed position, or integrated into a wider security platform.
The table below summarizes the critical performance parameters and physical specs of the DF1300M system.
| Specification Category | Details |
|---|---|
| Spoofing Frequencies | BDS-B1I, GPS-L1C/A, GLONASS-L1, Galileo-E1 |
| Detection Range | Up to 2 Km (for common commercial drones & FPV) |
| Spoofing / Lure Range | Up to 2 Km (within effective zone) |
| Time to Effective Spoof | < 10 seconds (within range) |
| Effective Azimuth | 360° |
| Core Functions | Detection, Identification, Alert, Course Diversion, Hover, Forced Landing |
| Control Method | Physical Functional Buttons & Software Protocol |
| Display | Built-in Battery Level Indicator |
| Dimensions (L x W x H) | 350mm × 552mm × 240mm |
| Deployment Modes | Mobile, Fixed, Platform-Integrated |
The DF1300M is designed for scenarios requiring mobile, precise, and responsive drone threat mitigation:
Mobile Security & Patrols: Perfect for police units, military patrols, and VIP protection details needing on-the-move defense.
Critical Site Protection: Deploy around temporary high-value sites like public events, political summits, or disaster relief zones.
Single Operator “Man-Portable” Missions: Enables individual soldiers or security personnel to carry and operate a complete detect-and-defeat capability.
The system works in a two-step process:
Detection: Its onboard sensors scan the surrounding airspace, identifying and classifying UAV radio signals or radar signatures.
Spoofing: Once a threat is confirmed, the operator activates the GNSS spoofer. The device broadcasts powerful, but false, satellite navigation coordinates. The target drone, believing these signals to be genuine, adjusts its flight path accordingly, allowing the operator to redirect it.
