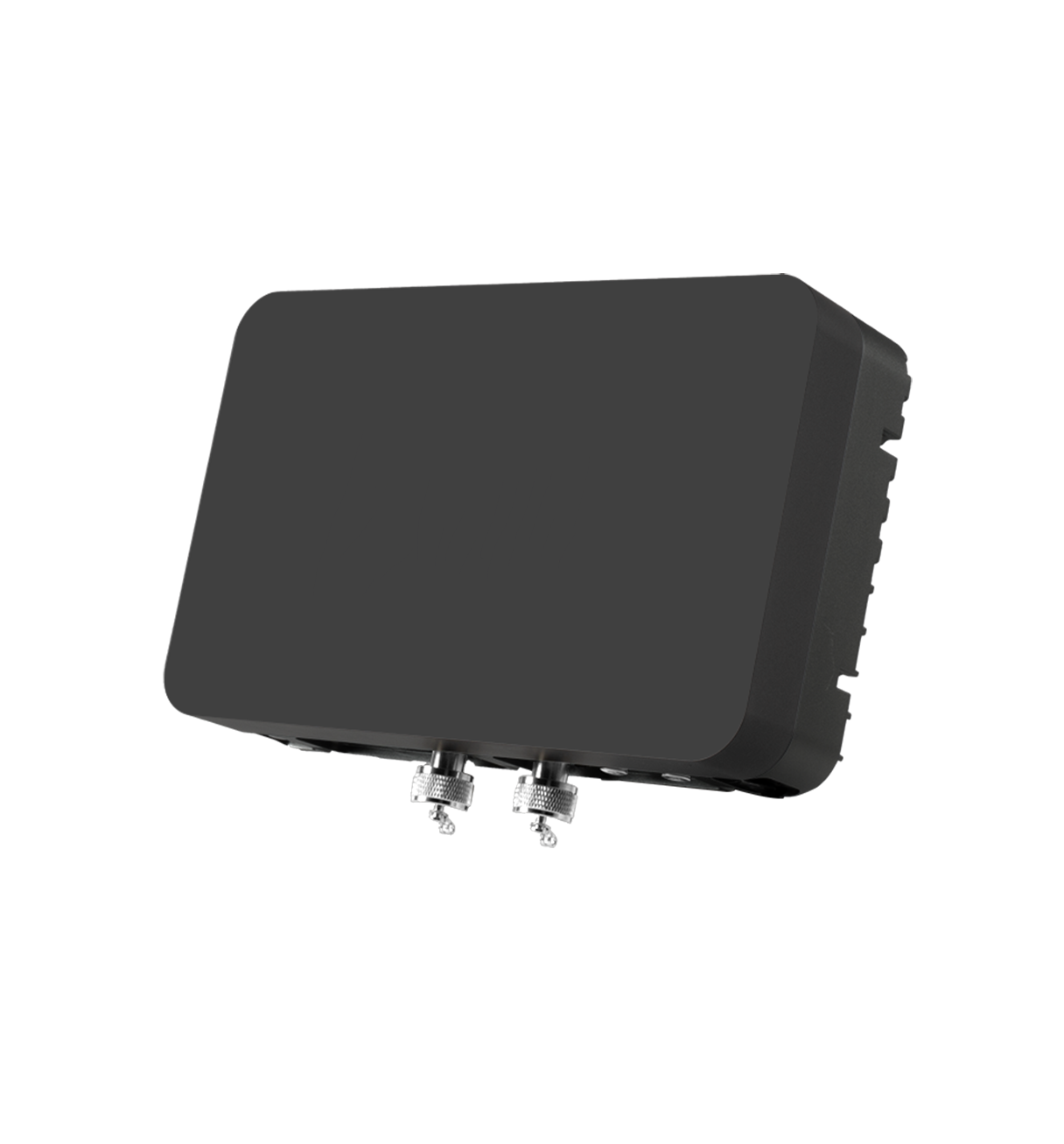

4000mW Ultra-High Power Dual-Band Outdoor WiFi Signal Amplifier The 4000mW (36dBm) Dual-Band Signal Booster is a rugged, professional-grade solution designed to dramatically extend the range and stability of wireless communications. Operating on both 2.4GHz and 5.8GHz frequencies, this amplifier is ideal for long-distance UAV (drone) remote control, outdoo……
The 4000mW (36dBm) Dual-Band Signal Booster is a rugged, professional-grade solution designed to dramatically extend the range and stability of wireless communications. Operating on both 2.4GHz and 5.8GHz frequencies, this amplifier is ideal for long-distance UAV (drone) remote control, outdoor wireless coverage, and high-interference environments.
Housed in a durable cast aluminum casing, it features a dual-antenna design with high-gain directional output, ensuring crystal-clear signal transmission even in extreme temperatures ranging from -40°C to +70°C.
Massive 4000mW Output: High-intensity 36dBm power for maximum penetrative strength and distance.
Dual-Band High-Gain Antennas: Includes 12dBi (2.4G) and 10dBi (5.8G) directional antennas for precision targeting.
UAV Optimized: Specifically engineered to enhance the remote control and video feed range of unmanned aerial vehicles.
Independent Power System: Equipped with an internal 4000mAh lithium battery, allowing for portable field operation without immediate external power.
Universal Compatibility: Supports IEEE 802.11 a/ac/b/g/n standards with channel widths up to 80MHz.
| Parameter | Specification |
| Operating Frequency | 2.4~2.5GHz; 5.0~5.8GHz (Dual-Band) |
| Max Output Power | 4000mW (36dBm) |
| Transmit Gain | 16 ~ 19 dB |
| Receiver Gain | < 12 dB |
| Input Power Range | 0 ~ 20 dBm |
| Supported Standards | IEEE 802.11a/ac/b/g/n |
| Channel Bandwidth | 20MHz / 40MHz / 80MHz |
| Noise Figure | < 3.5dB (Typical) |
| Operation Mode | Bi-directional, Half-duplex, TDD |
| Component | Details |
| Internal Battery | 10.8V / 4000mAh (43.2Wh) |
| Power Adapter | DC 12V/2A (100~240V Input) |
| Antenna Gain | 2.4G: 12dBi / 5.8G: 10dBi |
| Connector Type | N-K Female (Input) |
| Material | Heavy-duty Cast Aluminum |
| Operating Temp | -40°C to +70°C |
| Dimensions | 250mm x 155mm x 56mm |
| Net Weight | 2.25kg |
Eliminate signal dropouts and “Return to Home” triggers caused by weak signals. The 4000mW output ensures that your UAV remains responsive at distances far exceeding standard factory controllers.
The TDD (Time Division Duplex) operation and low noise figure (<3.5dB) make it a perfect choice for outdoor industrial sites where reliable high-speed data transmission is critical.
The cast aluminum chassis acts as a giant heat sink and protective shell, allowing the booster to function in 75% relative humidity and freezing or scorching temperatures.
The unit uses standard N-K Female connectors for easy integration with existing radio systems. Its internal battery provides the flexibility needed for mobile setups, while the 12V DC input supports permanent outdoor installations.
Note: Please ensure compliance with local radio frequency regulations regarding maximum EIRP (Effective Isotropic Radiated Power) before operating in public spaces.
