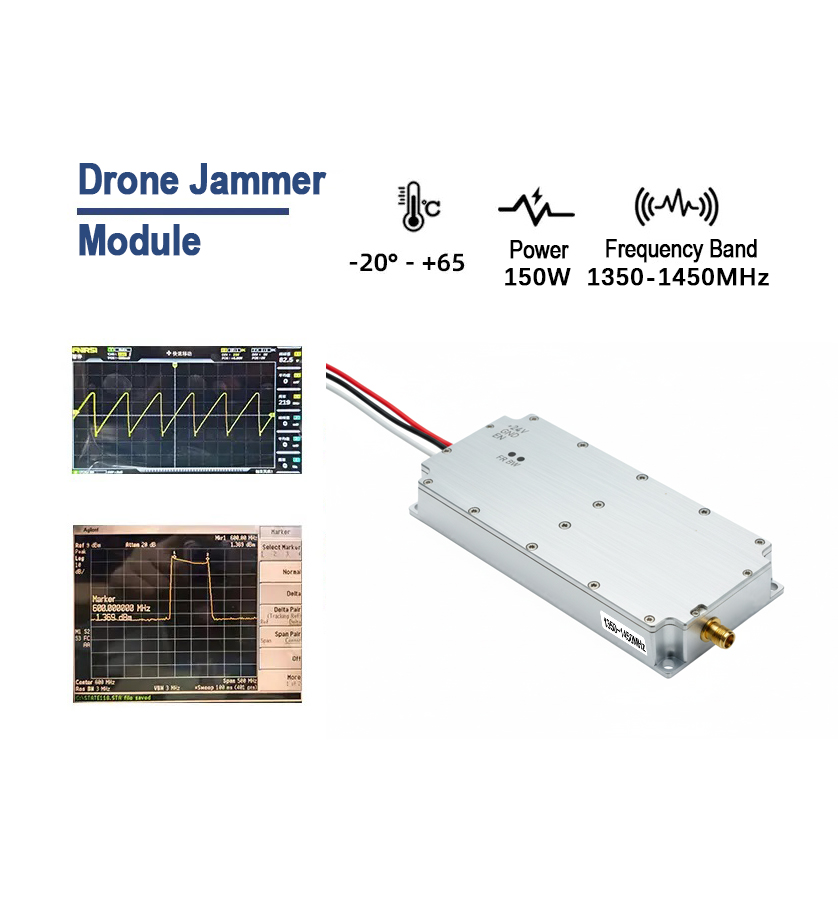

Home > Product > Drone jammer module > 200W > 150W 1350-1450MHz Drone Jammer Module with Built-in Sweep Source | High-Power UAV Signal Blocker
150W High-Power Drone Jammer Module for 1350~1450MHz Frequency Band This 150W drone jammer module is a high-performance, integrated solution designed for counter-unmanned aerial vehicle (C-UAV) applications. Operating within the 1350~1450MHz frequency range—commonly used for drone remote control, video transmission, and positioning signals—this compact yet……
This 150W drone jammer module is a high-performance, integrated solution designed for counter-unmanned aerial vehicle (C-UAV) applications. Operating within the 1350~1450MHz frequency range—commonly used for drone remote control, video transmission, and positioning signals—this compact yet powerful module effectively disrupts target communications. It forces unauthorized or threatening drones into fail-safe behaviors such as landing, returning to their point of origin, or hovering in place, thereby securing sensitive airspace.
Key Features & Benefits:
High-Power Output: Delivers 150W of effective jamming power across the target band, ensuring reliable signal suppression over a significant operational range.
Targeted Frequency Range: Precisely jams the 1350~1450MHz spectrum, a common band for commercial and consumer drone communication and control links.
Integrated Sweep Source: Features a built-in high-speed sweep frequency source, generating robust and dynamic interference signals to effectively overwhelm targeted drone signals.
Robust Protection & Design: Includes built-in absorptive VSWR (Voltage Standing Wave Ratio) protection, safeguarding the module from potential damage caused by antenna mismatch or poor connectivity (output VSWR ≤ 2.0).
Compact & Efficient: With high efficiency (≥40%), a compact form factor (168.5 x 84.5 x 23 mm), and low weight (0.55 kg), it is ideal for integration into portable, mobile, or fixed-installation anti-drone systems.
Simple Integration: Offers easy switch control (ON via +5V/open circuit, OFF via ground) and operates on a standard DC 24V~29V power supply, simplifying integration into larger security systems.
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Operating Frequency | 1350 ~ 1450 MHz |
| Output Power | 150W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage | DC 24V ~ 29V |
| Maximum Operating Current | 15.0 A |
| Efficiency | ≥ 40% |
| Switch Control | +5V or Open = ON / Ground = OFF |
| RF Output Connector | SMA Female |
| Interference Source | Built-in High-Speed Sweep Source |
| VSWR Protection | Built-in Absorptive Type |
| Dimensions | 168.5 * 84.5 * 23 mm |
| Weight | 0.55 kg |
Application Scenario
This module is the core interference component for building professional drone countermeasure equipment. It is essential for protecting critical infrastructure, government facilities, military installations, private venues, and public events from intrusive, spying, or malicious drone activities. By jamming key communication frequencies, it neutralizes the drone’s link to its operator, providing an effective non-kinetic security solution.
